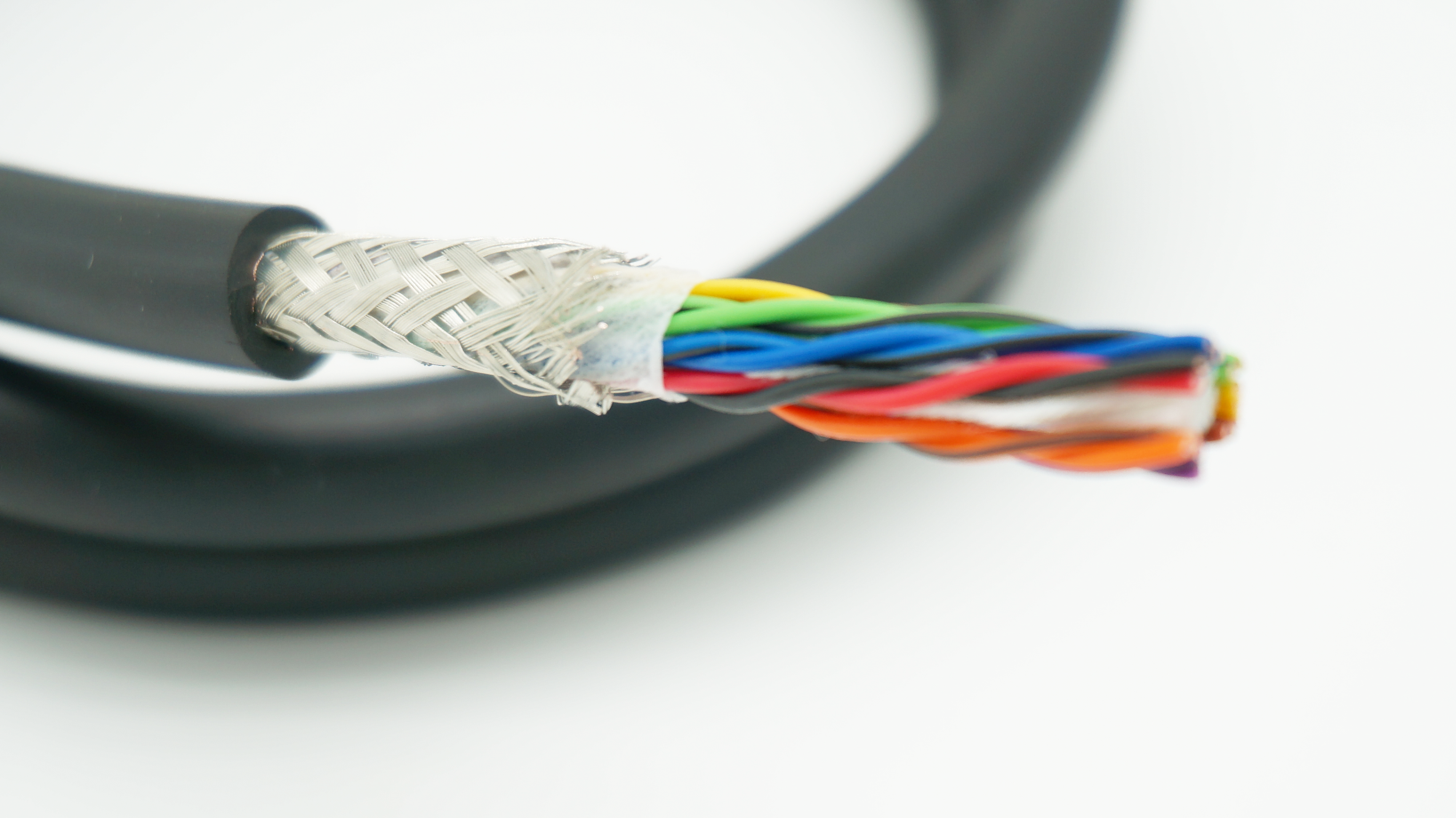

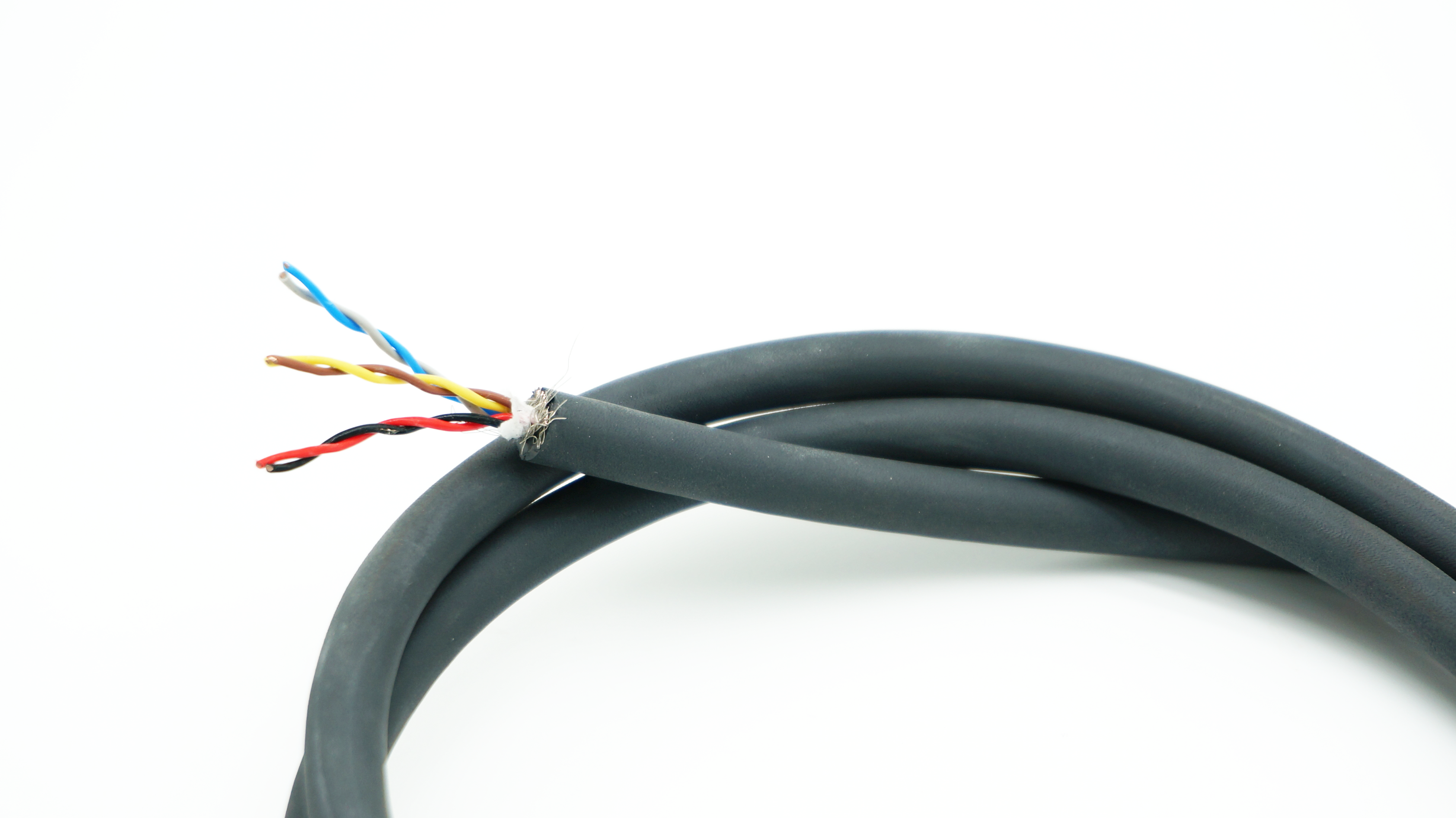

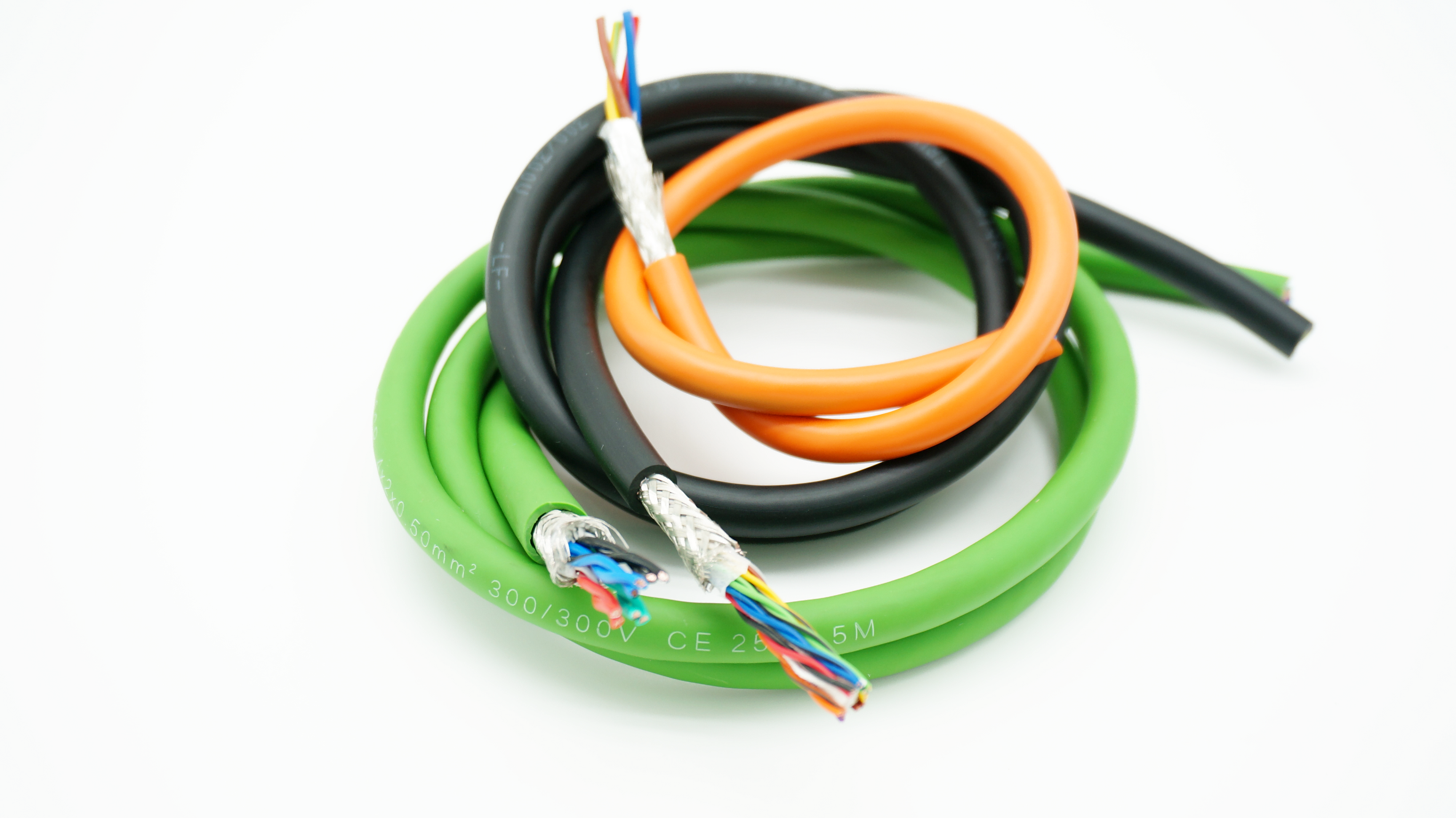

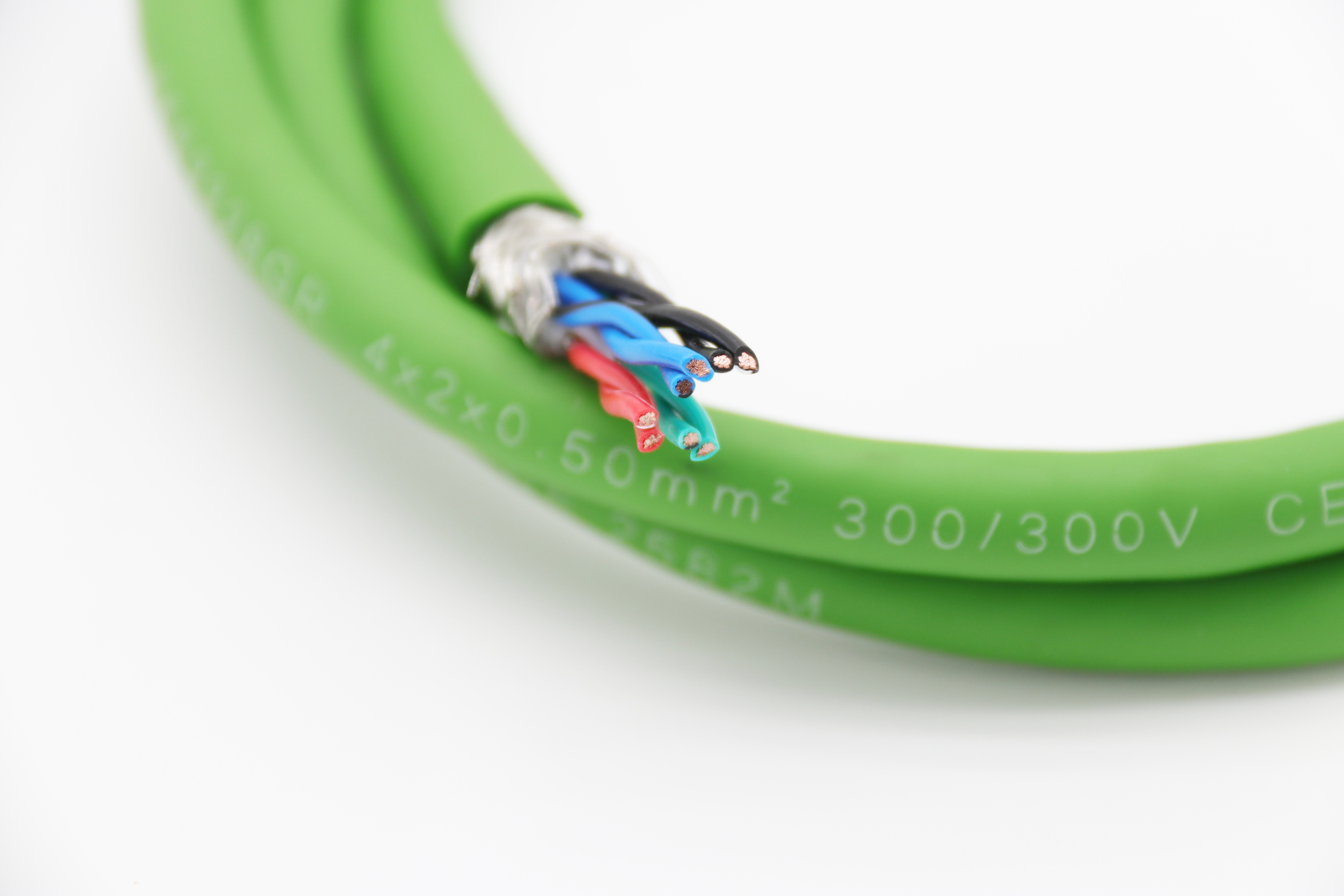

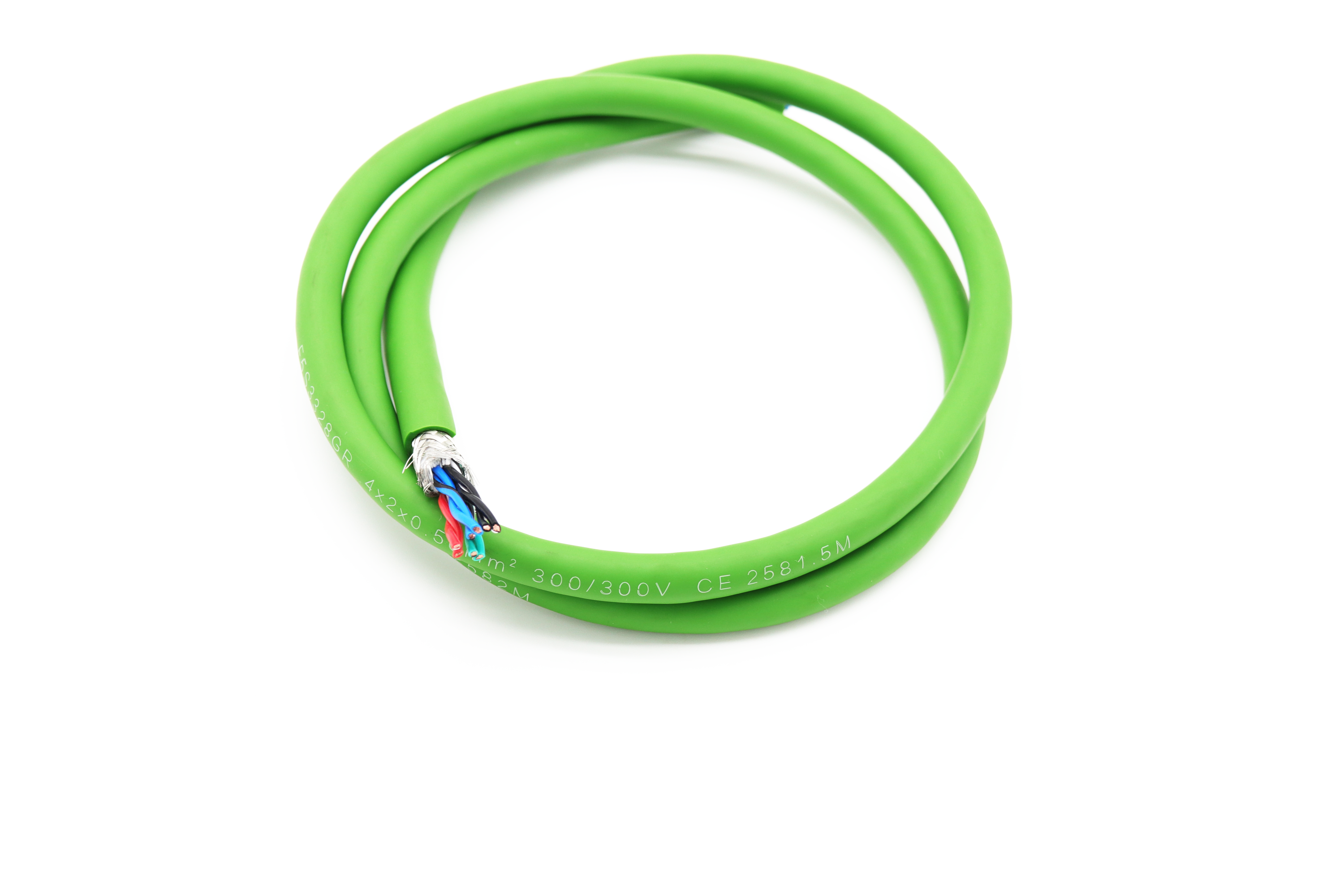

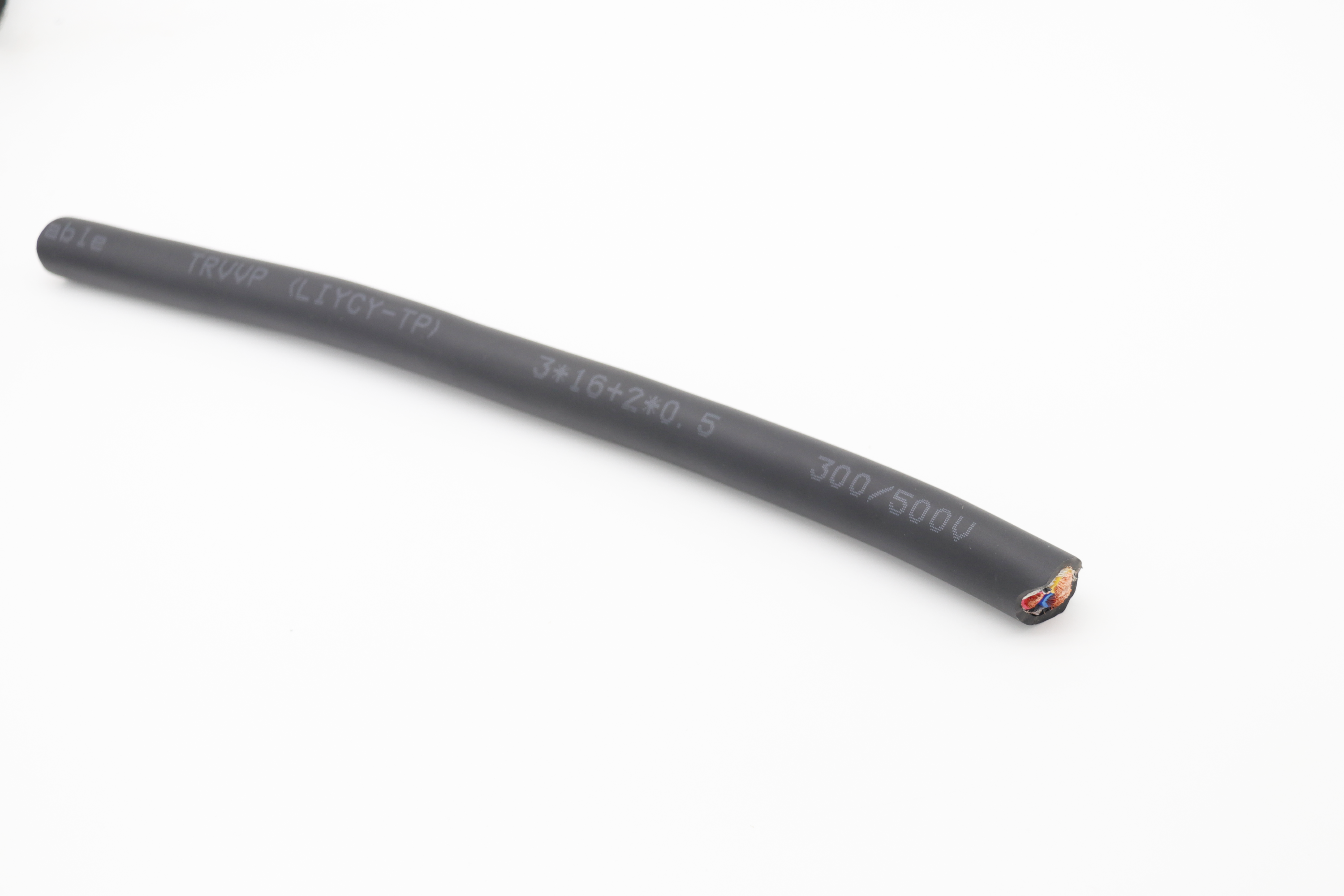

TRVV TRVVP RVVP LIYCY LIYY flexible multi core cable

Color: Optional
Size: customized
Package: 100m/coil
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • TRVVP

  • Haoqiang

Methods: Small diameter copper wire stranded, according to VDE 0295 class 6 standard

Temperature range : fixed installation:-40°C~+90°C mobile installation:-5°C~+90°C

Insulation resistance: ≥100MΩ*km

Shielding layer: Tinned copper wire braided with copper mesh shielding over 85% density

Insulator: Special customized flexible PVC insulation

Color: Black,gray and other customized colors

Bending radius: fixed installation: 4*cable diameter

mobile installation: 7.5*cable diameter

For e-chain system service life: more than 10 million cycles


ConductorBraid size
No./Φ mm		Outer
Diameter
mm		Approx Weight
kg/km
SpecificationConstruction
26AWG
3/10/0.08TS		2*0.1416/5/0.09TS3.922
3*0.1416/8/0.09TS4.024
4*0.1416/8/0.09TS4.227
5*0.1416/8/0.09TS4.531
7*0.1416/9/0.09TS5.036
10*0.1416/9/0.09TS5.848
12*0.1416/9/0.09TS5.952
14*0.1416/9/0.09TS6.358
18*0.1416/9/0.09TS6.771
25*0.1416/9/0.09TS7.795
24AWG
7/6/0.08TS		2*0.2516/8/0.09TS4.428
3*0.2516/8/0.09TS4.630
4*0.2516/9/0.09TS4.835
5*0.2516/9/0.09TS5.240
7*0.2516/9/0.09TS5.852
10*0.2516/9/0.09TS6.966
12*0.2516/9/0.09TS7.073
14*0.2516/9/0.09TS7.382
18*0.2516/9/0.09TS7.9100
25*0.2516/9/0.09TS9.5148
22AWG
7/10/0.08TS		2*0.3416/9/0.09TS4.631
3*0.3416/9/0.09TS4.834
4*0.3416/9/0.09TS5.139
5*0.3416/9/0.09TS5.446
7*0.3416/9/0.09TS6.261
10*0.3416/9/0.09TS7.377
12*0.3416/9/0.09TS7.486
14*0.3416/9/0.09TS7.797
18*0.3416/9/0.09TS8.3124
25*0.3416/9/0.09TS10.1176
