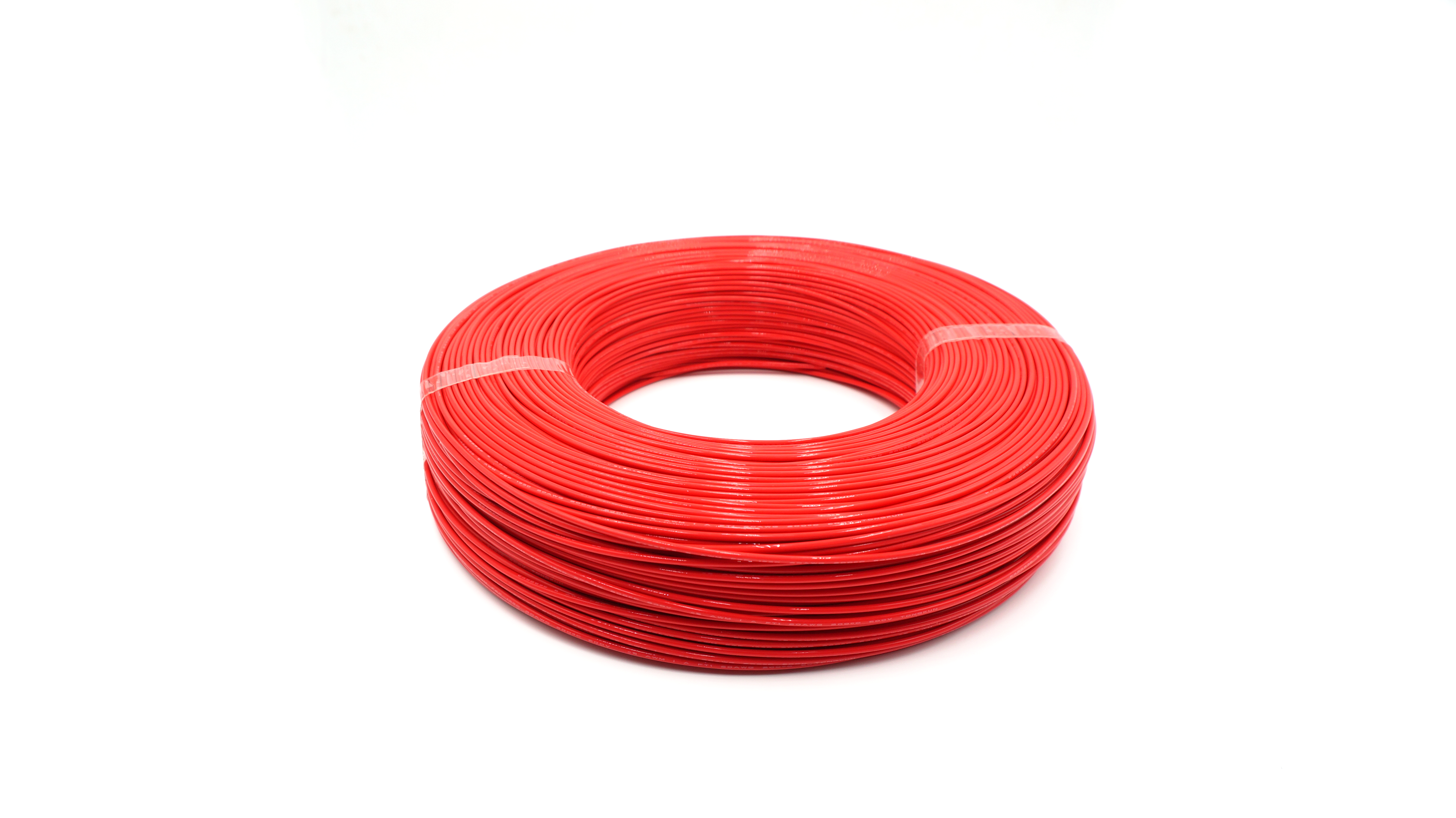

UL1330/1331
Haoqiang
Rated Voltage : 600V
Temperature range : -100°C~ +200°C
Executive Standard:UL758,UL1581
Conductor : tinned copper or bare copper
Insulator: FEP Teflon
Color: red, black, yellow, green, blue, white, brown, gray
Application: used for the internal connection wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.
| Conductor | Insulator | Packing | |||
| AWG | Construction (No./mm) | Diameter (mm) | Insulator Thickness (mm) | Outer Diameter (mm) | Mt/coils |
| 30 | 7*0.10 | 0.25 | 0.30 | 1.30 | 610 |
| 28 | 7*0.127 | 0.31 | 0.30 | 1.38 | 610 |
| 26 | 7*0.16 | 0.49 | 0.46 | 1.48 | 305 |
| 19*0.10 | 0.50 | 0.46 | 1.46 | 305 | |
| 24 | 7*0.20 | 0.61 | 0.46 | 1.53 | 305 |
| 19*0.12 | 0.60 | 0.46 | 1.52 | 305 | |
| 22 | 7*0.254 | 0.76 | 0.46 | 1.68 | 305 |
| 19*0.15 | 0.76 | 0.46 | 1.68 | 305 | |
| 20 | 7*0.31 | 0.95 | 0.46 | 1.87 | 305 |
| 19*0.19 | 0.96 | 0.46 | 1.88 | 305 | |
| 18 | 7*0.39 | 1.19 | 0.46 | 2.11 | 305 |
| 19*0.235 | 1.18 | 0.46 | 2.10 | 305 | |
| 16 | 7*0.50 | 1.53 | 0.46 | 2.45 | 305 |
| 19*0.30 | 1.51 | 0.46 | 2.43 | 305 | |
| 14 | 19*0.37 | 1.86 | 0.46 | 2.78 | 200 |
| 12 | 19*0.46 | 2.32 | 0.46 | 3.29 | 100 |
| 10 | 37*0.43 | 3.02 | 0.50 | 4.02 | 100 |
Rated Voltage : 600V
Temperature range : -100°C~ +200°C
Executive Standard:UL758,UL1581
Conductor : tinned copper or bare copper
Insulator: FEP Teflon
Color: red, black, yellow, green, blue, white, brown, gray
Application: used for the internal connection wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.
| Conductor | Insulator | Packing | |||
| AWG | Construction (No./mm) | Diameter (mm) | Insulator Thickness (mm) | Outer Diameter (mm) | Mt/coils |
| 30 | 7*0.10 | 0.25 | 0.30 | 1.30 | 610 |
| 28 | 7*0.127 | 0.31 | 0.30 | 1.38 | 610 |
| 26 | 7*0.16 | 0.49 | 0.46 | 1.48 | 305 |
| 19*0.10 | 0.50 | 0.46 | 1.46 | 305 | |
| 24 | 7*0.20 | 0.61 | 0.46 | 1.53 | 305 |
| 19*0.12 | 0.60 | 0.46 | 1.52 | 305 | |
| 22 | 7*0.254 | 0.76 | 0.46 | 1.68 | 305 |
| 19*0.15 | 0.76 | 0.46 | 1.68 | 305 | |
| 20 | 7*0.31 | 0.95 | 0.46 | 1.87 | 305 |
| 19*0.19 | 0.96 | 0.46 | 1.88 | 305 | |
| 18 | 7*0.39 | 1.19 | 0.46 | 2.11 | 305 |
| 19*0.235 | 1.18 | 0.46 | 2.10 | 305 | |
| 16 | 7*0.50 | 1.53 | 0.46 | 2.45 | 305 |
| 19*0.30 | 1.51 | 0.46 | 2.43 | 305 | |
| 14 | 19*0.37 | 1.86 | 0.46 | 2.78 | 200 |
| 12 | 19*0.46 | 2.32 | 0.46 | 3.29 | 100 |
| 10 | 37*0.43 | 3.02 | 0.50 | 4.02 | 100 |
