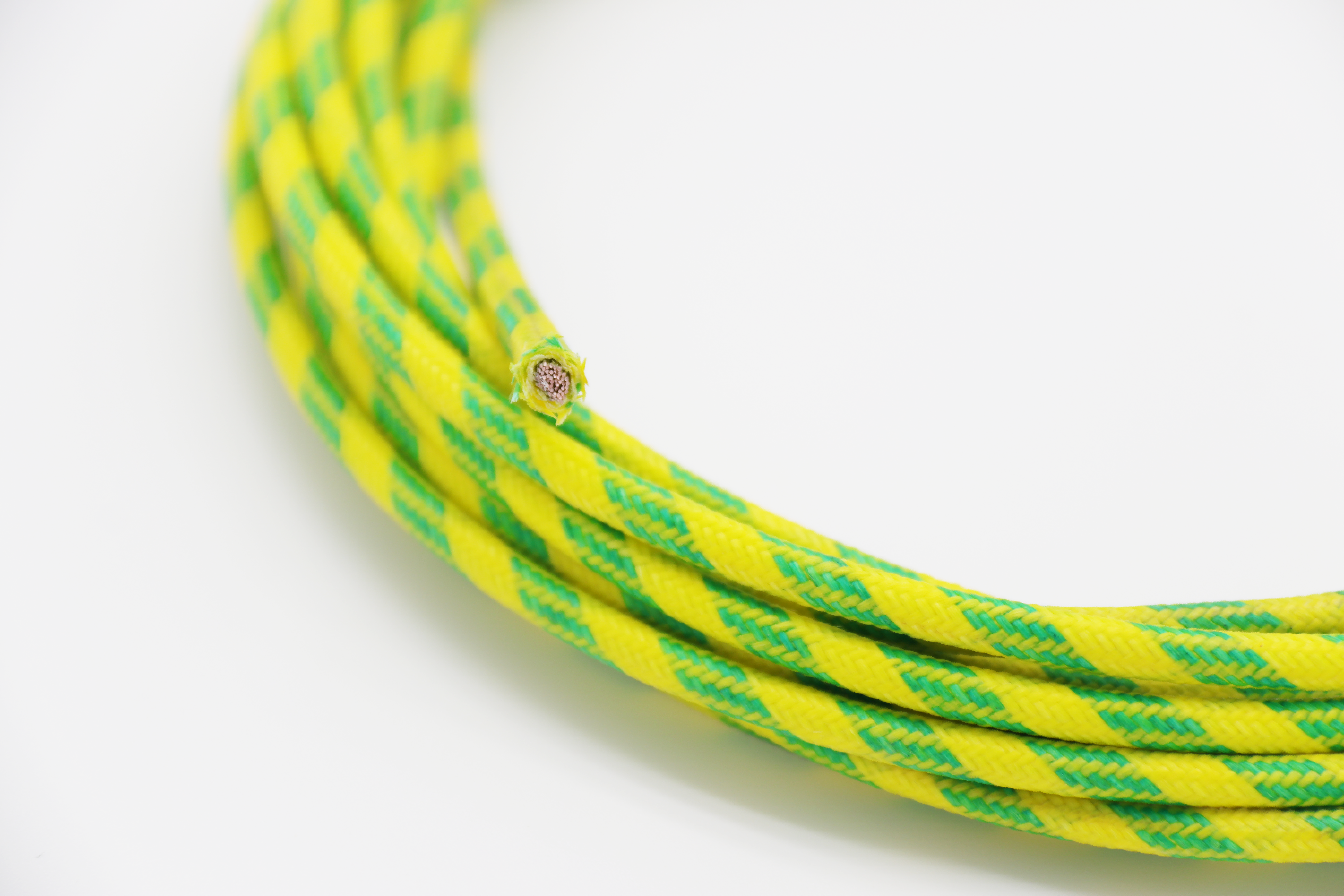

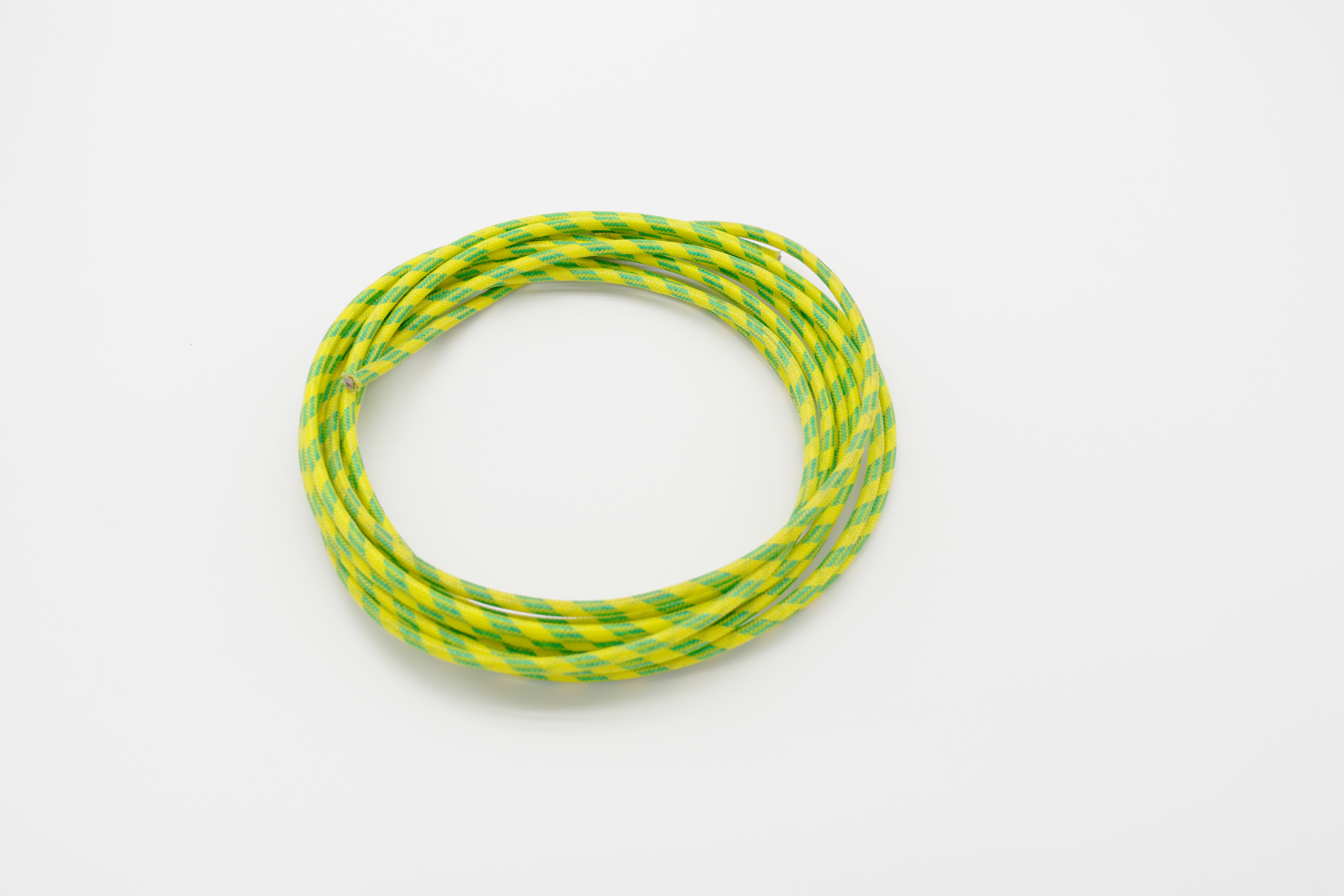

UL3122
Haoqiang
Rated Voltage :300V
Temperature range : -60°C~ +200°C
Executive Standard:UL758,UL1581
Conductor : tinned copper or bare copper
Insulator: Silicone rubber+fiberglass
Color: red, black, yellow, green, blue, white, brown
Application： used for the inner fixed wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.
| Conductor | Insulator | Packing | ||||
| AWG | Construction (No./mm) | Diameter (mm) | Insulator Thickness (mm) | Braid Thickness (mm) | Outer Diameter (mm) | Mt/coils |
| 24 | 8*0.18 | 0.59 | 0.40 | 0.225 | 1.85 | 305 |
| 22 | 12*0.18 | 0.72 | 0.42 | 0.225 | 2.00 | 305 |
| 20 | 20*0.18 | 0.93 | 0.41 | 0.225 | 2.20 | 305 |
| 18 | 30*0.18 | 1.14 | 0.43 | 0.225 | 2.45 | 305 |
| 16 | 50*0.18 | 1.47 | 0.42 | 0.225 | 2.75 | 305 |
| 24 | 7*0.20 | 0.61 | 0.40 | 0.225 | 1.85 | 305 |
| 22 | 12*0.18 | 0.78 | 0.39 | 0.225 | 2.00 | 305 |
| 20 | 7*0.31 | 0.95 | 0.40 | 0.225 | 2.20 | 305 |
| 18 | 7*0.39 | 1.19 | 0.40 | 0.225 | 2.45 | 305 |
| 16 | 7*0.50 | 1.53 | 0.39 | 0.225 | 2.75 | 305 |
| 14 | 41*0.254 | 1.88 | 0.44 | 0.225 | 3.20 | 200 |
| 12 | 65*0.254 | 2.37 | 0.64 | 0.225 | 4.10 | 200 |
| 10 | 105*0.254 | 3.01 | 0.72 | 0.225 | 4.90 | 200 |
