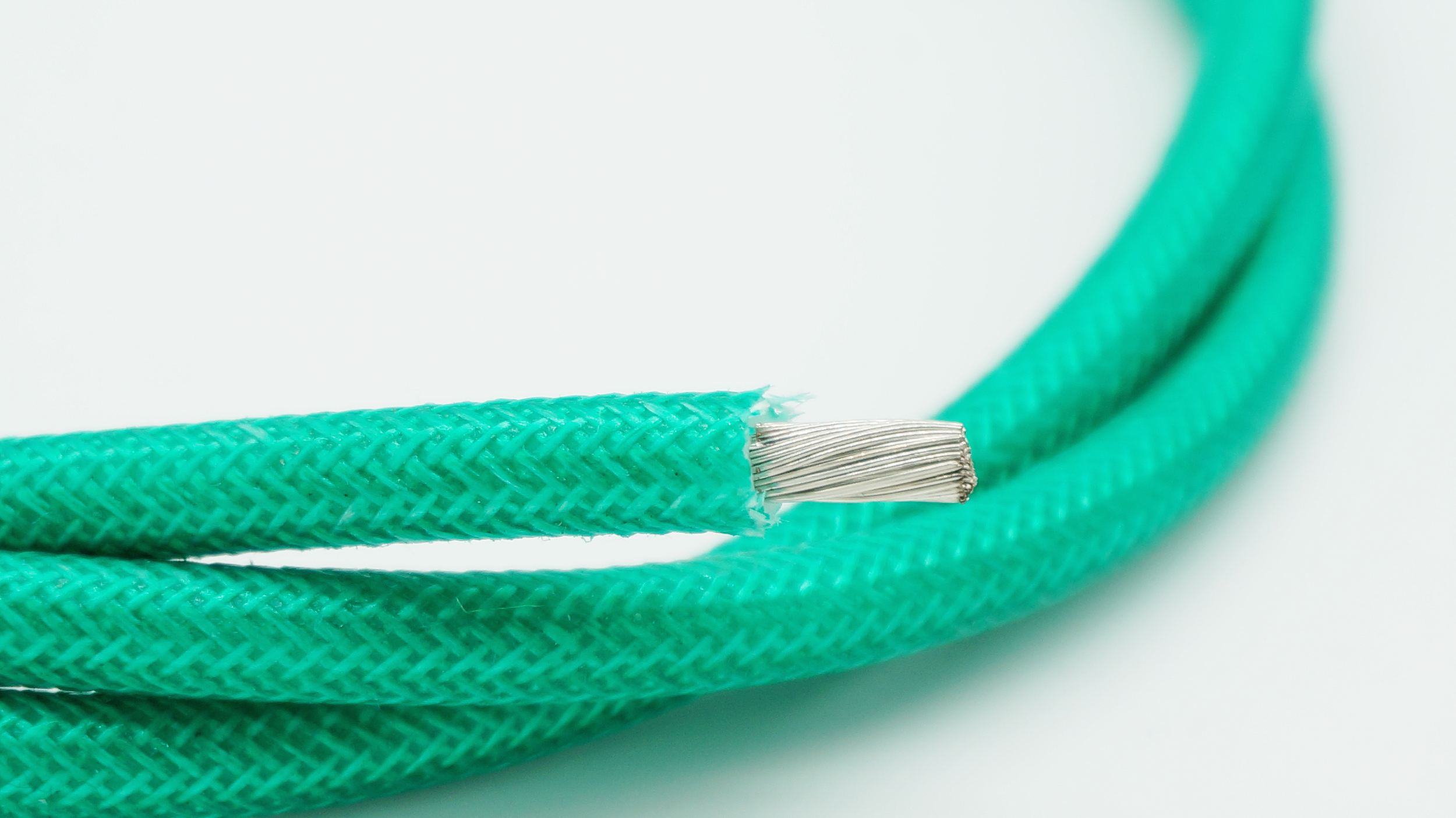

UL3320 Silicone Wire

Color: Optional
Size: 0.2-14
Package: 500m/coil
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • UL3320

  • Haoqiang

Rated Voltage :300V

Temperature range : -60°C~ +200°C

Executive Standard:UL758,UL1581

Conductor : tinned copper or bare copper

Insulator: Silicone rubber+fiberglass

Color: red, black, yellow, green, blue, white, brown

Application： used for the inner fixed wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.


ConductorInsulatorPacking
AWGConstruction
(No./mm)		Diameter
(mm)		Insulator

Thickness

(mm)

Braid Thickness (mm)Outer
Diameter (mm)		Mt/coils
0.20 1*0.500.50 0.40 0.20 1.70 500
0.30 1*0.600.60 0.40 0.20 1.80 500
0.50 1*0.800.80 0.40 0.20 2.00 400
0.75 1*1.001.00 0.40 0.20 2.20 400
1.25 1*1.201.20 0.45 0.20 2.50 200
0.25 7*0.200.61 0.40 0.20 1.81 500
0.30 12*0.180.72 0.40 0.20 1.92 500
0.50 20*0.180.93 0.40 0.20 2.13 500
0.75 30*0.181.14 0.40 0.20 2.64 500
1.25 50*0.181.47 0.40 0.20 2.67 400
2.00 37*0.261.83 0.50 0.20 3.23 200
2.50 47*0.262.06 0.50 0.20 3.46 200
3.50 45*0.322.48 0.60 0.20 4.08 100
4.00 50*0.322.61 0.60 0.20 4.21 100
5.50 35*0.453.08 0.70 0.20 4.88 100
8.00 50*0.453.67 0.70 0.20 5.48 100
14.00 88*0.454.88 1.10 0.20 7.28 100
