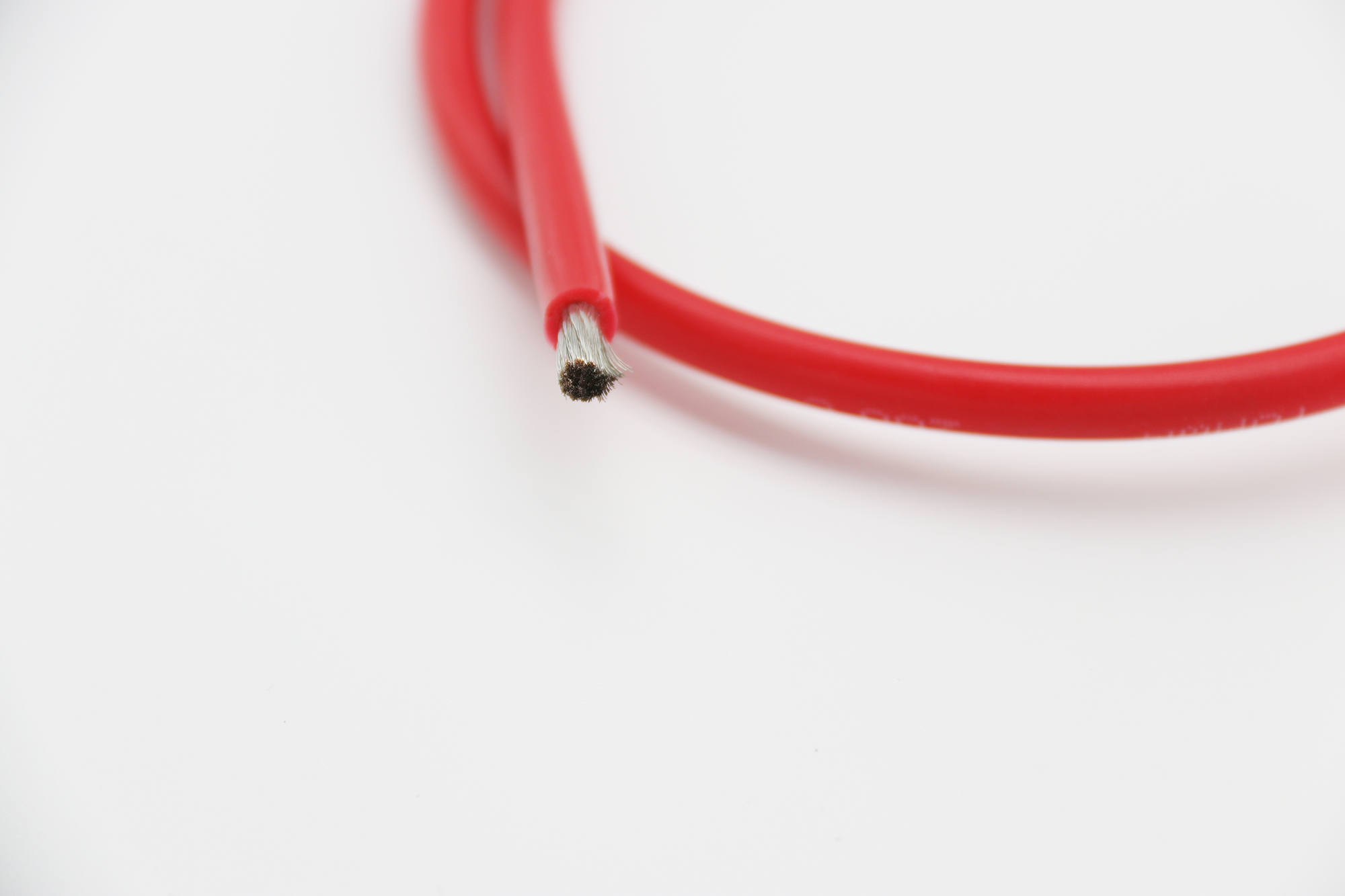

UL3529
Haoqiang
Rated Voltage : 600V
Temperature range : -60°C~ +150°C
Executive Standard:UL758,UL1581
Conductor : Nickel,silver plated or tinned copper
Insulator: Silicone
Color: red, black, yellow, green, blue, white, brown, gray
Application： used for the inner fixed wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.
| Conductor | Insulator | Packing | |||
| AWG | Construction (No./mm) | Diameter (mm) | Insulator Thickness (mm) | Outer Diameter (mm) | Mt/coils |
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 610 |
| 28 | 7/0.12 | 0.36 | 0.78 | 1.92 | 610 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 610 |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.16 | 610 |
| 22 | 7/0.26 | 0.78 | 0.78 | 2.34 | 610 |
| 20 | 7/0.32 | 0.96 | 0.78 | 2.52 | 305 |
| 18 | 7/0.40 | 1.20 | 0.78 | 2.76 | 305 |
| 16 | 7/0.50 | 1.50 | 0.78 | 3.04 | 305 |
| 14 | 40/0.26 | 1.90 | 0.78 | 3.46 | 305 |
| 12 | 49/0.30 | 2.70 | 0.78 | 4.26 | 305 |
Rated Voltage : 600V
Temperature range : -60°C~ +150°C
Executive Standard:UL758,UL1581
Conductor : Nickel,silver plated or tinned copper
Insulator: Silicone
Color: red, black, yellow, green, blue, white, brown, gray
Application： used for the inner fixed wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.
| Conductor | Insulator | Packing | |||
| AWG | Construction (No./mm) | Diameter (mm) | Insulator Thickness (mm) | Outer Diameter (mm) | Mt/coils |
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 610 |
| 28 | 7/0.12 | 0.36 | 0.78 | 1.92 | 610 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 610 |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.16 | 610 |
| 22 | 7/0.26 | 0.78 | 0.78 | 2.34 | 610 |
| 20 | 7/0.32 | 0.96 | 0.78 | 2.52 | 305 |
| 18 | 7/0.40 | 1.20 | 0.78 | 2.76 | 305 |
| 16 | 7/0.50 | 1.50 | 0.78 | 3.04 | 305 |
| 14 | 40/0.26 | 1.90 | 0.78 | 3.46 | 305 |
| 12 | 49/0.30 | 2.70 | 0.78 | 4.26 | 305 |
