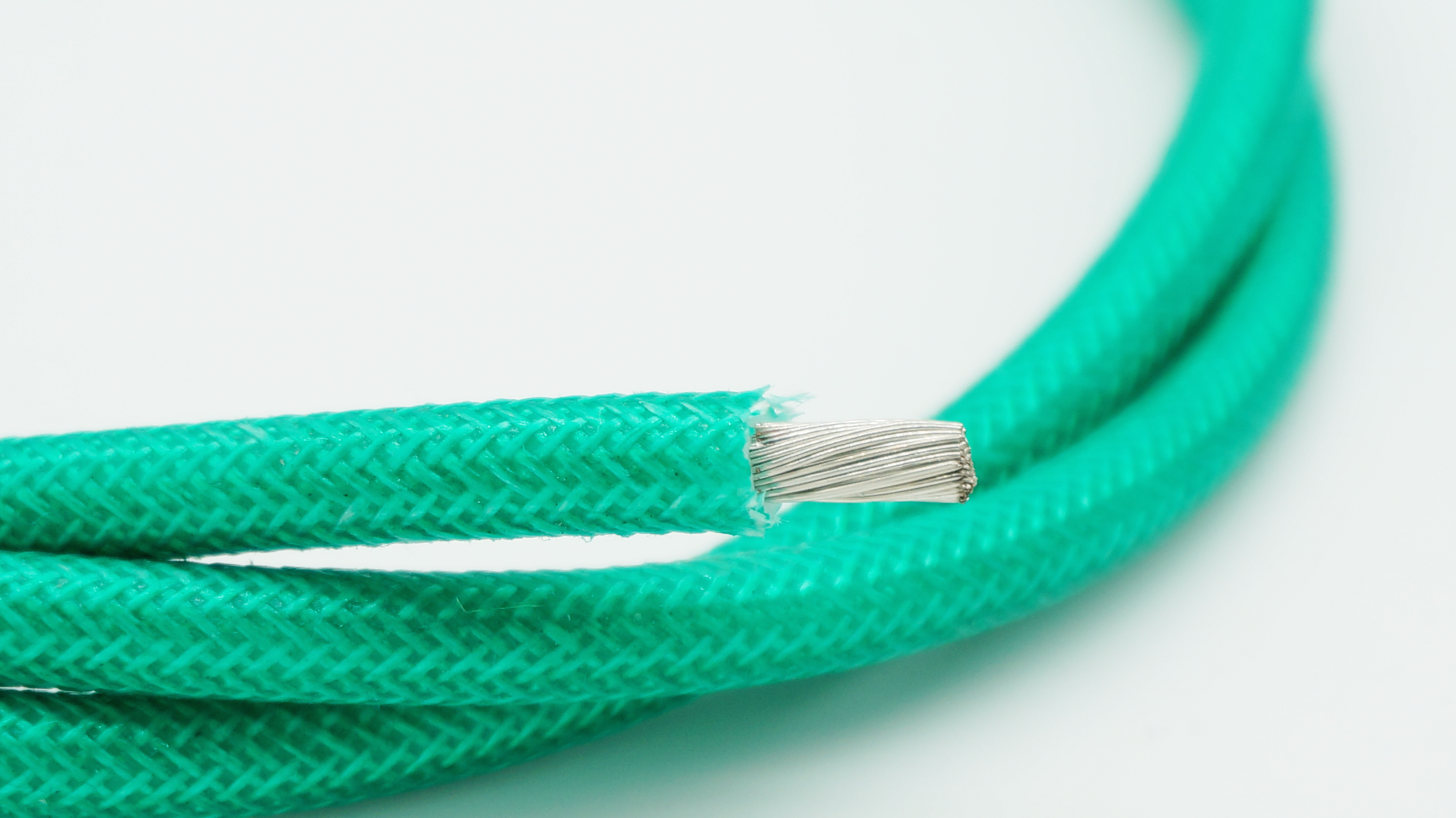

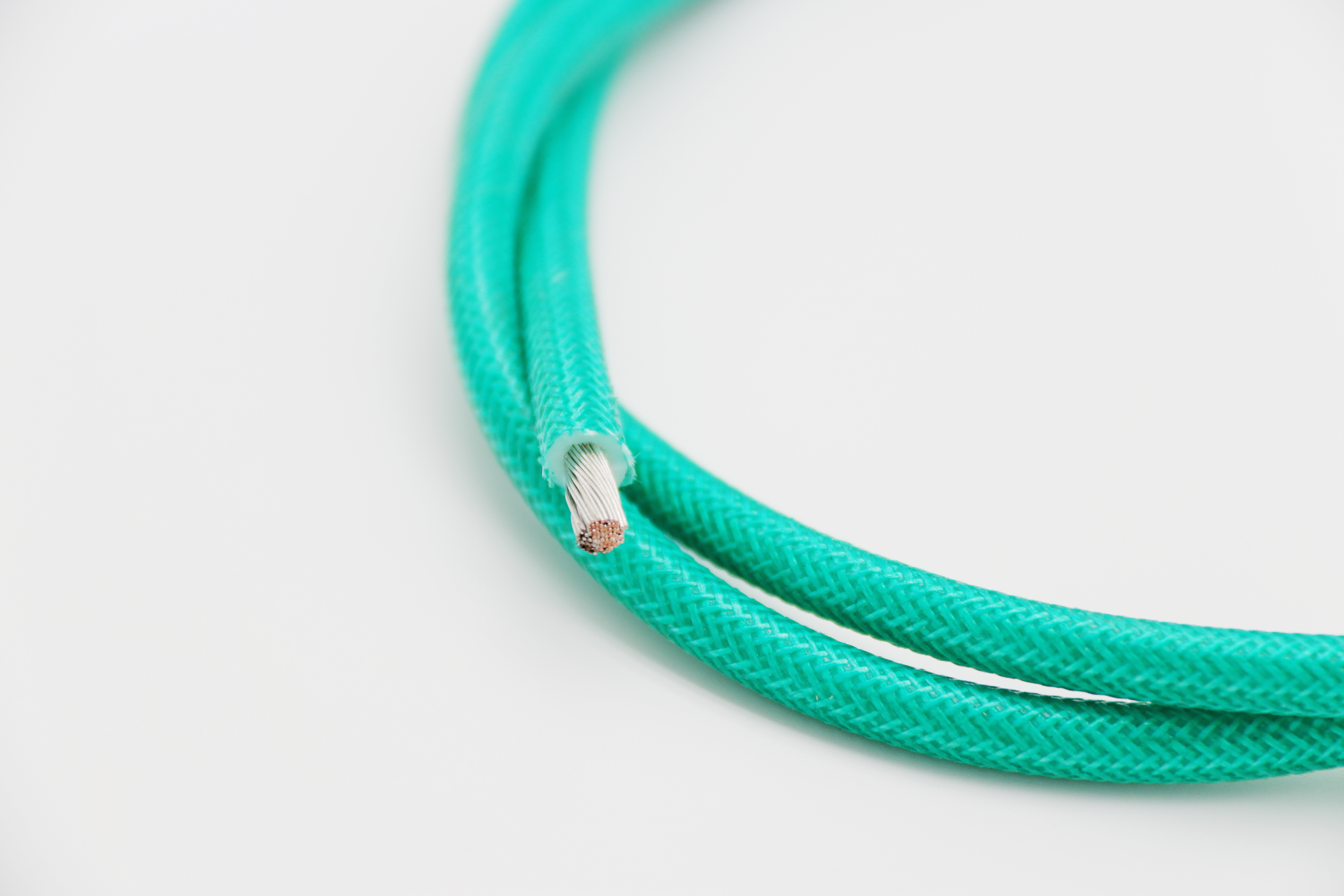

UL3529
Haoqiang
Rated Voltage : 600V(UL3071,UL3074/UL3075) 300V(UL3122)
Temperature range : -60°C~ +200°C
Executive Standard:UL758,UL1581
Conductor : Nickel,silver plated or tinned copper
Insulator: Silicone Rubber
Braid: Glass Fiber
Color: red, black, yellow, green, blue, white, brown, gray
Application： used for the inner fixed wires of home appliance,headlamp, mechanical and electrical machine, temperature sensor etc.
| Conductor | Insulation | Max.Cond | Packing | |||
| Resistance | Mt/coil | |||||
| Size | Construction | Diameter | Nominal Thickness | Diameter | (Ω/KM) | |
| (AWG) | (No./mm) | (mm) | (mm) | (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.6 | 1.68 | 143 | 305 |
| 24 | 7/0.20 | 0.61 | 0.6 | 1.81 | 89.3 | 305 |
| 22 | 7/0.254 | 0.77 | 0.6 | 1.97 | 56.4 | 305 |
| 20 | 7/0.31 | 0.94 | 0.6 | 2.14 | 35.2 | 305 |
| 18 | 7/0.39 | 1.19 | 0.6 | 2.39 | 22.2 | 305 |
| 16 | 7/0.49 | 1.49 | 0.6 | 2.69 | 14 | 305 |
| 24 | 1/0.50 | 0.5 | 0.65 | 1.8 | 89.3 | 305 |
| 22 | 1/0.65 | 0.65 | 0.65 | 1.95 | 56.4 | 305 |
| 20 | 1/0.81 | 0.81 | 0.65 | 2.11 | 35.2 | 305 |
| 18 | 1/1.02 | 1.02 | 0.65 | 2.32 | 22.2 | 305 |
| 16 | 1/1.20 | 1.2 | 0.65 | 2.5 | 14 | 305 |
| 24 | 11/0.16 | 0.61 | 0.6 | 1.81 | 89.3 | 305 |
| 22 | 1 7/0.16 | 0.76 | 0.6 | 1.96 | 56.4 | 305 |
| 20 | 26/0.16 | 0.94 | 0.6 | 2.14 | 35.2 | 305 |
| 18 | 41/0.16 | 1.18 | 0.6 | 2.38 | 22.2 | 305 |
| 16 | 26/0.254 | 1.49 | 0.6 | 2.69 | 14 | 305 |
| 0.30mm² | 12/0.18 | 0.71 | 0.6 | 1.91 | 59.78 | 305 |
| 0.50mm² | 20/0.18 | 0.92 | 0.6 | 2.12 | 40.1 | 305 |
| 0.75mm² | 30/0.18 | 1.13 | 0.6 | 2.33 | 26.7 | 305 |
| 1.00mm² | 40/0.18 | 1.31 | 0.6 | 2.51 | 20 | 305 |
| 1.25mm² | 50/0.18 | 1.46 | 0.6 | 2.66 | 14.35 | 305 |
