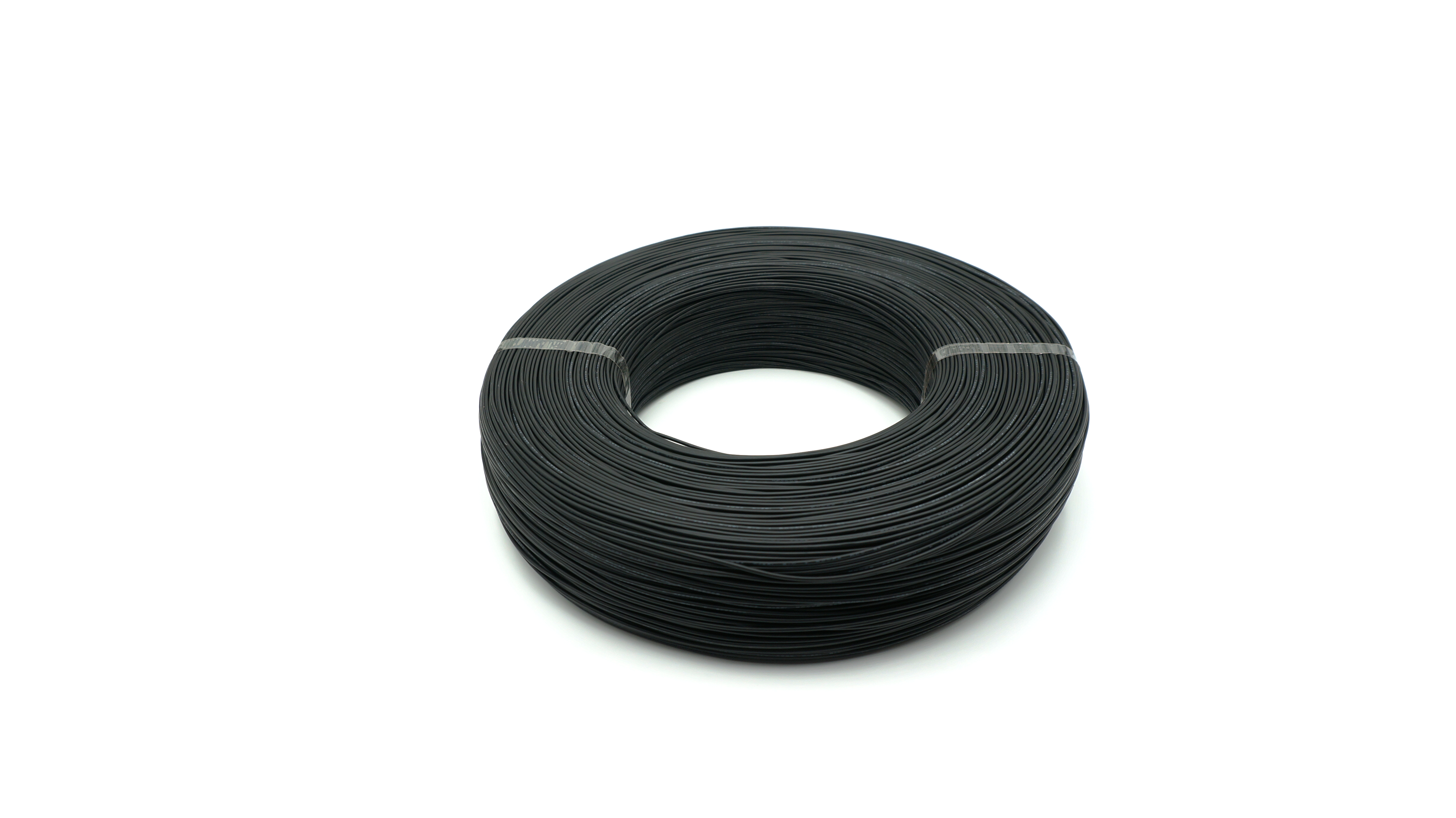

UL3321 XLPE Hook up Wire

Color: Optional
Size: 10 - 30 AWG
Package: 610m/coil
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • UL3266

  • Haoqiang

Rated Voltage : 600V

Temperature range : -60°C~+125°C

Executive Standard:UL758,UL1581

Conductor : 30AWG~10AWG tinned copper or bare copper

Insulator: XLPE

Color: red, black, yellow, green, blue, white, brown, gray

Application：used for the internal connection of electronics, electrical appliance, motor, transformer and other equipment



ConductorInsulatorPacking
AWGConstruction
(No./mm)		Diameter
(mm)		Insulator
Thickness (mm)		Outer

Diameter

(mm)

Mt/coils
307/0.100.310.351.6610
287/0.1270.370.451.8610
267/0.160.490.552.0610
2411/0.160.610.802.2610
2217/0.160.780.802.4305
2021/0.1780.970.802.6305
1834/0.1781.170.802.8305
1626/0.2541.500.803.1305
1441/0.2541.900.853.5305
1265/0.2542.370.853.9305
10105/0.2543.010.855.1305
